7075 T652 Aluminium Plate (250-450mm)

待议 分享

TIPS: Based on T6, T652 is conducted a certain amount of permanent deformation forging to eliminate the internal stress, so that the cutting and processing is not easy to deform.


Product attribute
Grade 7075
TemperT6 / T651/T652
Standard EN485-2008,GB/T3880-2018
Thickness/ Size

 T6  1-260mm/1250*2500mm(mostly), 1500*3000mm, 2000*4000mm

 T651   10-200mm/1250*2500mm(mostly), 1500*3000mm, 2000*4000mm

 T652   250-450mm/1500*3000mm

Surface

brushed (thickness<50mm), polished(>50mm)

the front side covers protect film(thickness<100mm)

other
1) Thickness > 6mm could be cut to smaller size.
2) The above are ready stocks. If you have specific requirement about the specifications, please feel free to contact us.


Product parameter

7075 is an aluminum alloy with zinc as the main trace element. It has the highest strength among all the aluminium and excellent mechanical and anodic reaction. It could be applied for aircraft structure, die, jig, mechanical equipment, precision workpiece, etc.



  • Chemical composition, Standard (max), W%
Al: balance
SiFeCuMnMgZnCrOther
0.40.51.2-2.00.32.1-2.95.1-6.10.18-0.28Zr+Ti0.25



  • Mechanical Property (Standard Value)
T6T651
Tensile Strength(MPa)≥ 540≥ 540
Yield Strength(MPa)≥470470
Elongation(%) ≥66

The above values is subject to be different due to different thickness.



Product Description

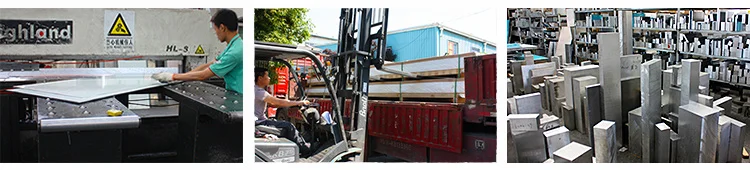

 01  Warehouse photos
  • The application of high-quality aluminium materials could enable a better and more stable quality for your products. At the same time, your market competitiveness will be improved accordingly.
  • We aim to deliver the high-quality aluminium products to the customers all around the world.
  • We have an inventory of over 8000 tons (Ready to Ship)

450mm super-thick 7075 T652 aluminum plate sheet



02 Prduct details
  • The interior has been scanned and tested by various advanced instruments
  • Smooth surface, high flatness
  • Thickness tolerance about ±1%
  • Thickness<100mm, there is a protective film covering the surface (random color).

450mm super-thick 7075 T652 aluminum plate sheet



03 Cutting and packing
  • We have more than ten cutting equipment and machines.
  • Thickness<8mm, we sale whole plate only. The whole plate is able to be cut to smaller size.

  • Thickness not less than 8mm, we sale the small pieces in any dimensions.
  • The tailor-made ERP system ensures all the products are traceable to provide the original factory certificate.

450mm super-thick 7075 T652 aluminum plate sheet

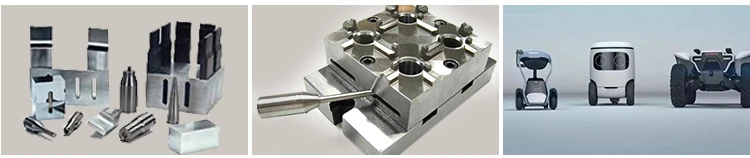

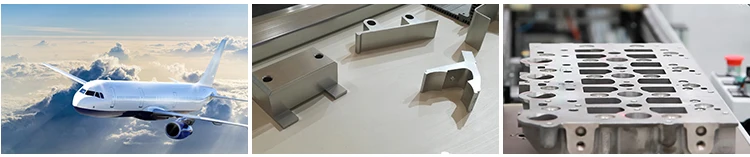

 04 Typical application
  • Because of its superior performance, more and more applications have been obtained.
450mm super-thick 7075 T652 aluminum plate sheet
AerospaceStructural partsTool and mould
450mm super-thick 7075 T652 aluminum plate sheet
Ultrasonic mouldFixture and gagesIntelligent home facilities
450mm super-thick 7075 T652 aluminum plate sheet
Consumer electronicsOutdoor goods High-end products
Our Services
  •  Can be cut

Aluminum plates and bars can be sawn to small sizes to save processing time.

  • Fast Delivery

Keeping adequate inventory helps you save time, especially on plate and bar.

  • Low MOQ

We accept small orders as well as FCL   orders. One sample can also be mailed.

450mm super-thick 7075 T652 aluminum plate sheet


We have an inventory of over 8000 tons. Mostly, our product is Ready To Ship. Small quantity is acceptable for fast delivery.

450mm super-thick 7075 T652 aluminum plate sheet
